Peripheral devices - Automatic time switch 【Back】 |
1, Used in automatic doors and access control of power and signal control.
2, Built-in battery, precision industrial chips.
Technical Parameters
Item |
Technical parameters |
Supply Voltage |
DC12V ± 15% |
Power Consumption |
About 1.5VA |
Control Output |
5A, 12VAC (resistive load) |
Display |
LCD Display |
Travel time error |
Less than 1 second / day |
Switching times |
Day / week cycle 16 switches |
Ambient temperature |
-25 ℃ ~ 60 ℃ |
Humidity |
45 ~ 85% RH |
Mechanical life |
At least 3000,000 times |
Weight |
Approximately 120 g |
Installation |
Guide |

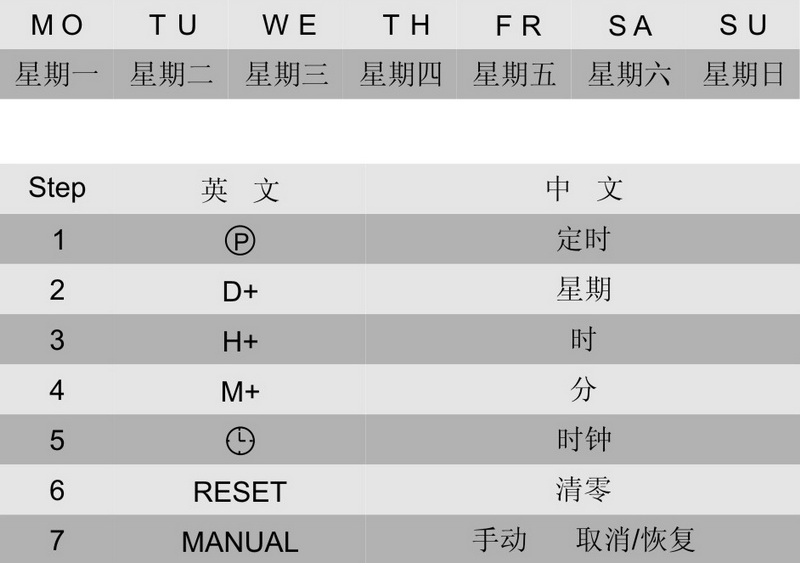

English table
Dimensions

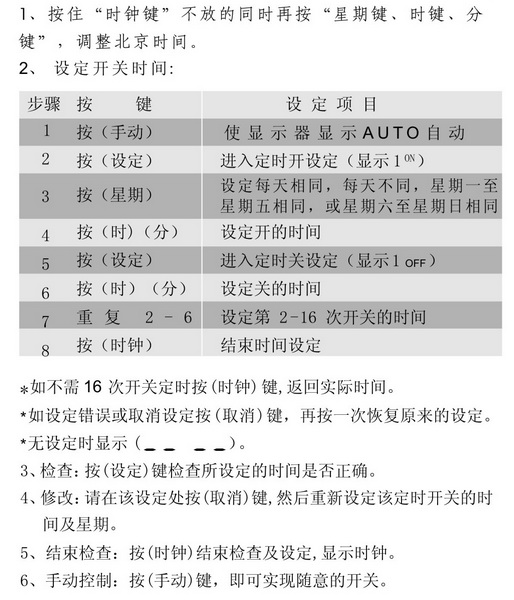

Operational use
Precautions
1, Be sure to tighten the screw terminal wiring.
2, Controller DC12V power line, do not receive 220VAC.
3, When the red light indicates that the internal controller switch is closed off.
4, Set the time, can not cross set order of time should be set.
