Peripheral devices - Wireless hand switch 【Back】 |

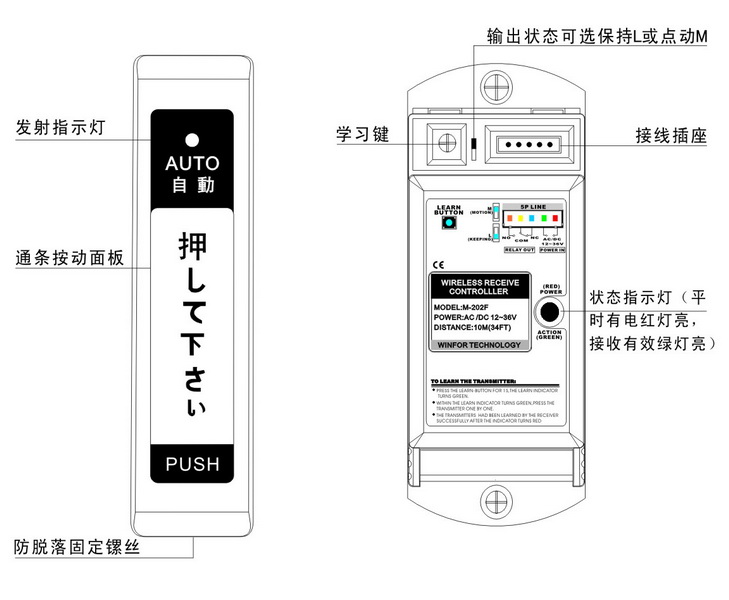

Overall characteristics
1, using the SAW resonator frequency stabilization, frequency consistency, high stability wireless transceiver;
2, the internal button waterproof and dustproof design, help to improve the product life;
3, the operating frequency 315M, stability is better than 10-5;
4, hand charge technology uses a low-power transmitter, firing distance, low power consumption, long battery life;
5, four-point press the trigger designed to ensure that the hand of pressing charges Through effective, lightweight and reliable trigger feel good;
6, with a large-capacity contact signal output, external automatic door locks and power needed to access available;
7, the use of self-learning code, easy to charge customers at any time to add the hand switch;
8, wide input voltage design, 12 ~ 365V AC and DC power inputs are valid;
9, when the red light is converted to green light remote control switch, you can switch to confirm the validity;
Precautions
1, the product of self-learning pattern, before using the remote control code must be learned in order to use the controller (remote control at the factory have already randomly learn), the same code only learn once. Study up to 16 different encoding;
2, learning methods: Click the button to release the study, the light turns green, into the learning state, then press the switch to learn the hand charge, the green light flashes twice, you can learn successfully. Automatically exit back to standby after 3 seconds;
3, delete method: Hold down the learning button for 5 seconds, the green light flashes twice, you can delete all codes. (This product does not have a single deletion)
4, maintaining or jog output is switched off when in the state to switch, otherwise the switch is invalid;
5, open the cover, built-in DIP switches, you can stagger the coding used to prevent interference between adjacent two devices;
Technical indicators and parameters
Item |
Technical parameters |
Power supply (wireless receiver) |
AC/DC12 ~ 36V |
Quiescent Current |
15mA |
Operating current |
80mA (DC12V supply) |
Main contact capacity (Wireless receiver) |
20A 14VDC |
Contact Pick-hold time (Wireless receiver) |
3 seconds |
Power supply (transmitter) |
12V (2颗12V batteries, parallel power supply) |
Emission current (emitter) |
3.9mA |
Battery life (transmitter) |
Charge an average 200 times a day, while resistant to 300 days |
Transceiver distance |
Depending on the actual site electrical shielding environment, under normal conditions of up to five meters above |
Dimensions (transmitter) |
150mm (L) × 40mm (W) × 12.5mm (H) |
Dimensions (Receiver) |
123mm (L) × 50mm (W) × 32mm (H) |
