Peripheral devices - The palm of your hand induction switch 【Back】 |
Overall characteristics
1, Hand (or launching objects) positive non-contact sensor, clean and hygienic;
2, 1 ~ 20cm adjustable sensing distance, can be set for different occasions;
3, Imports of high sensitivity infrared tube, sensor timely and convenient;
4, Using infrared modem, no interference and the interference signal;

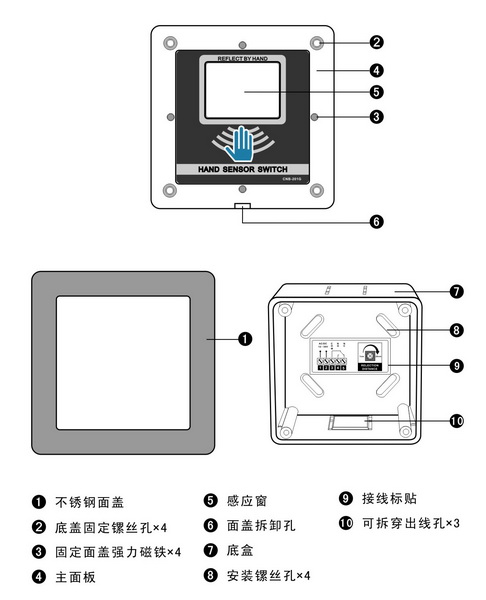

5, 86 type switch panel design, with a special bottom box, easy to install various occasions;
6, New magnetic metal panel design, a more refined fashion;
7, Dry contact relay outputs for easy connection to various gated and equipment;
Application Usage
Technical Parameters
Item |
Technical parameters |
Output Power |
AC/DC12V ~ 36V |
Sensing distance |
1 ~ 20cm adjustable |
Frequency modulation and demodulation |
38KHz (DC12V supply) |
Operating current |
55mA |
Dimensions |
92 × 92 × 33mm |
Hole size |
85 × 85 × 30mm |
