Peripheral devices - Hand induction switch 【Back】 |
 |
Overall characteristics
1, there is a body of the safety light curtain detection area for automatic sliding door anti-pinch or other occasions. Can accurately detect objects automatically translating human activities or folder area to avoid clip hit; human presence signals are also available for other devices.
2, using the background self-learning function, boot automatically learn the background state, intelligent automatically adapt to various scenes. Automatic real-time background for accurate time drift compensation, and can change due to various external factors (such as: vibration, deformation, gradually shifting, shade and sun, etc.) to generate self-correcting, to ensure long-term reliable operation of the detector.
3, with the adjacent sensor anti mutual function, the same even if the equipment is not installed adjacent to malfunction.

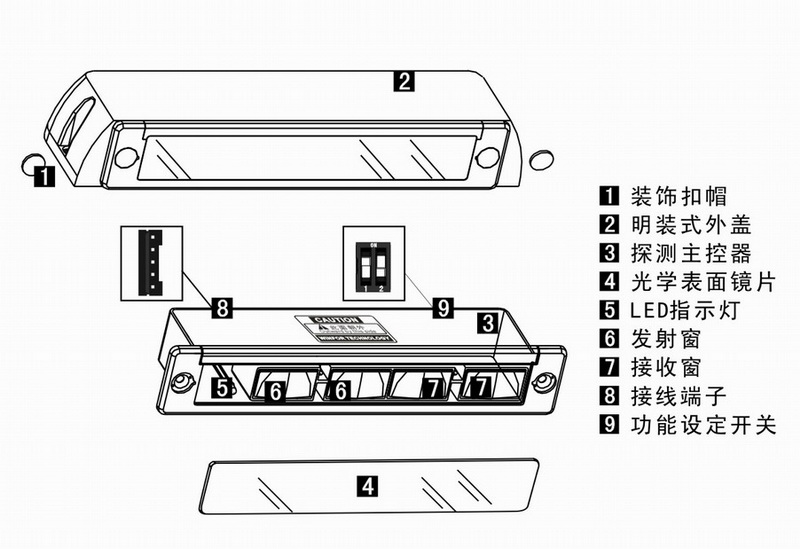

Product Overview

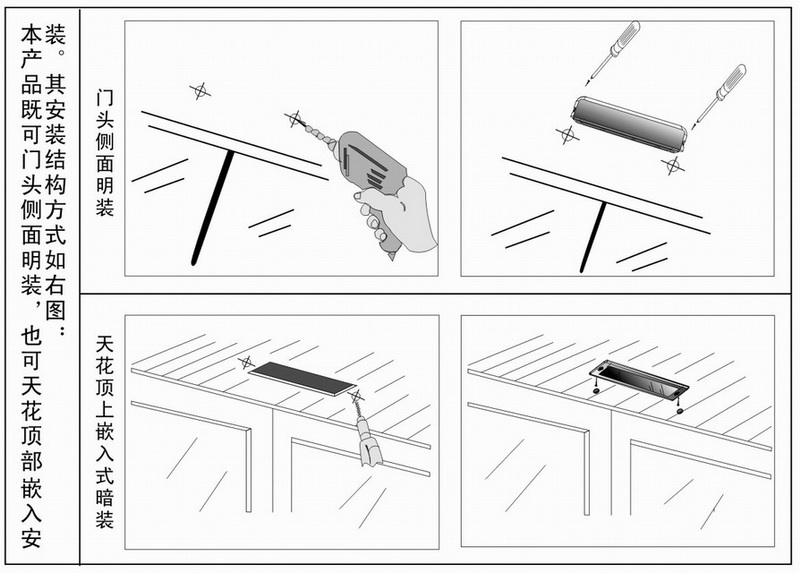

Installation
Detection range

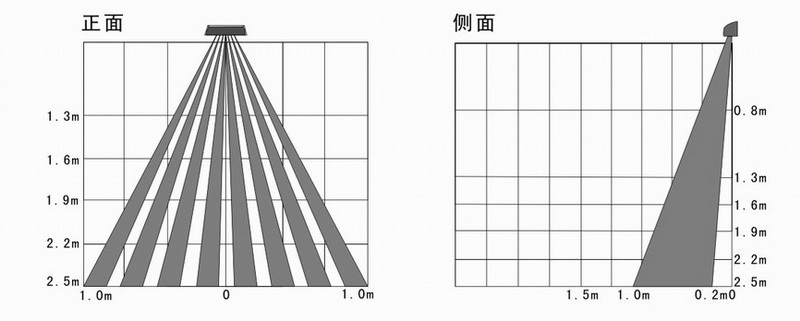

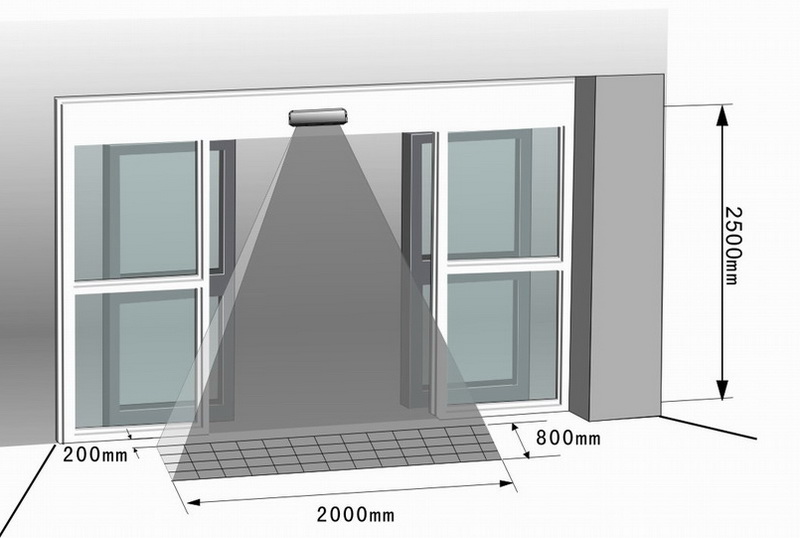

A, Large-scale scanning, horizontal scanning function switch set width of 2000mm

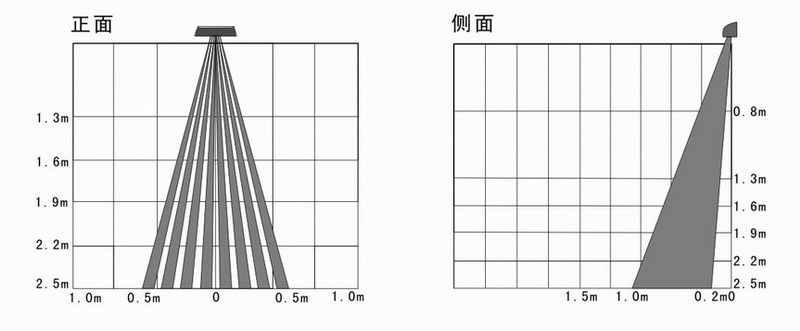

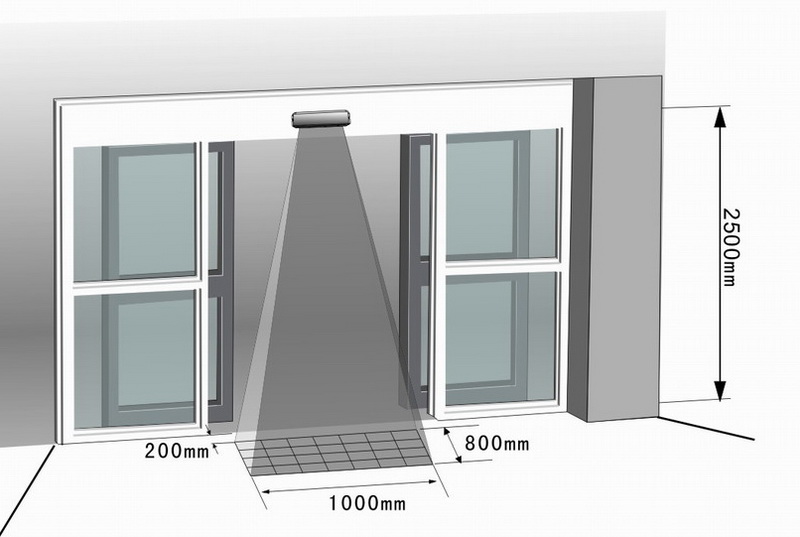

B, Small-scale scanning, horizontal scanning function switch set width of 1000mm
The main technical parameters
|
Item |
Technical parameters |
|
Output Power |
AC / DC 12 ~ 30V (- / +10%) |
|
Type of light |
Modulated infrared light |
|
Light source |
Infrared 940mm |
|
Beam |
Octal launch, eight reception |
|
Quiescent Current |
35mA |
|
Operating current |
73 mA |
|
Self-study time |
10s |
|
Operation Display |
red LED reconnaissance action |
|
Temperature Range |
-40 ℃ ~ 60 ℃ |
|
Maximum mounting height |
2500mm |
|
Detection zone |
(Max) 2000 (W) × 800 (D) mm |
|
|
(Min) 1000 (W) × 800 (D) mm |
|
Output hold time |
500ms |
|
Response time |
≤ 100 ms |
|
Switch Mode |
High / low sensitivity switch; horizontal scan Circuit Switching |
|
Signal output |
Relay, one pair of optional contact points |
|
Protection class |
IP54 |
|
Connection |
5-pin terminal block 1 ~ 1.5mm 2 of |
|
Shell |
ABS |
|
Optical surface |
PMMA |
|
Installation |
Ming-mounted or concealed mounting |
|
Weight |
Approximately 145 g |
|
Dimensions |
Mounted 200 (L) × 49 (W) × 32 (H) mm |
|
|
mm Hidden openings 152 (L) × 38 (W) × 25 (H) mm |
