Peripheral devices - Pedal induction switch 【Back】 |
 |
Overall qualities
1,A microprocessor modulation and demodulation active active infrared.
2, detection mode: foot appears to be truncated beam, generating a trigger signal to open the door.
3, used in hospital operating rooms, laboratories as well as the clean room entrance automatic door sensor control.
4, microcomputer control, international fine brushed stainless steel exterior design.
5, front concealed screws embedded compact optical eye on the radio head. Easy installation, stable performance, strong anti-interference ability.

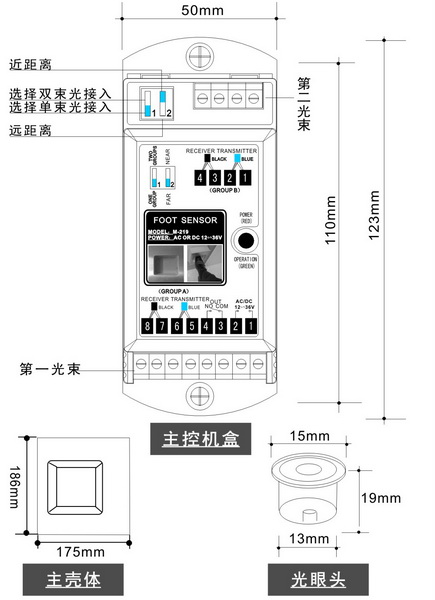

Dimensions and panel layout

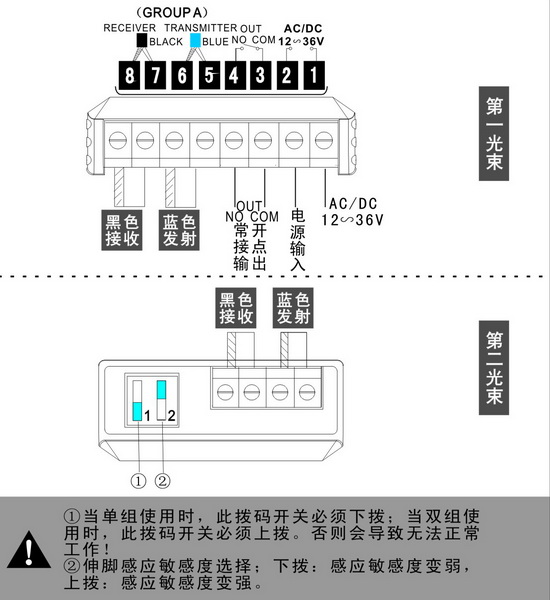

Input and output terminal wiring
The main technical parameters
|
Item |
Technical parameters |
|
Technical measures |
Active microprocessor modem active infrared |
|
Recommended mounting height |
Center from the ground 0.3 meters. Optional single-and double-only type |
|
Partial beam half angle |
5 degrees |
|
Detection mode |
Feet appear to be truncated beam, generating a trigger signal to open the door |
|
Reaction time |
Relay output ≤ 45ms |
|
Power Input |
AC/DC 12~36V |
|
Total power consumption |
82mA monitor signal: 4.5S MA |
|
Signal indication |
When the radio control is effective, red light, green light flashes when the beam is truncated |
|
Ambient temperature |
-20℃~+55℃ |
|
Immunity |
Sunlight 81000LUX |
|
Incandescent lamp |
36000LUX |
|
Electronic Microwave |
Meet the standard 89/336/CEE |
|
Dimensions |
123mm×50mm×32mm(Master controller) |
|
19mm×13mm(Light eyes) |
|
|
186mm×175mm×53mm(Main body) |
|
|
Signal output |
Relay normally open dry contact signal |
|
Total weight (including accessories) |
1000 g |
