Peripheral devices - sensors 【Back】 |
Part name institutions
Technical Parameters
Item |
Technical parameters |
Implementation Technology |
Microwave and microwave processor |
Transmitting frequency |
24.125GHz |
Transmit Power |
<20dBm EIRP |
Transmitting frequency density |
<5mW/cm 2 |
Maximum mounting height |
4 m |
Installation slope |
0-90 (vertical); -30 to +30 (horizontal) |
Detection mode |
Sports |
The minimum detection speed |
5cm / s (along the longitudinal axis of the sensor) |
Power Consumption |
<2W (VA) |
Detection range (Mounting height = 2.2 m) |
4 m (width) × 2 m (depth) |
Relay output (No initial potential) |
COM NO |
Maximum contact voltage |
42VAC-60VDC |
Maximum contact current |
1A |
Maximum switching power |
30W (DC) / 60VA (AC) |
Hold time |
0.5 seconds |
Cable length |
2.5 m |
Temperature Range |
-20 ℃ to +55 ℃ |
Degree of protection |
Ip54 |
Case Material |
ABS plastic |
Shell color |
Black, silver |
Anti-jamming performance |
R & TTE 1995/5/EC, EMC 89/366/EEC |
Supply Voltage |
12V to 30VAC ± 10% (50 ~ 60Hz) |
Dimensions |
120mm (width) × 80mm (height) × 50mm (depth) |

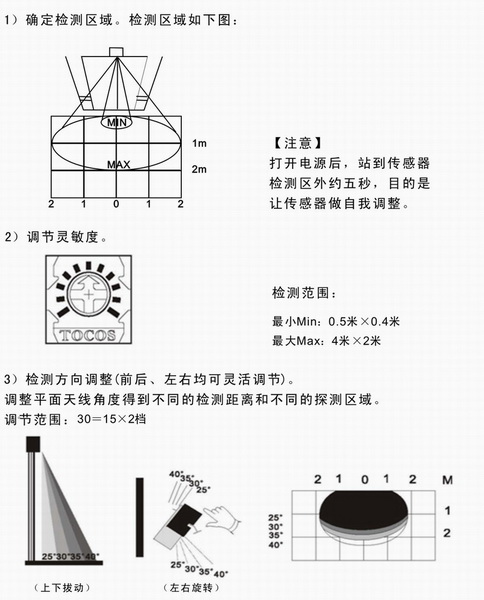

Sensor Adjustment

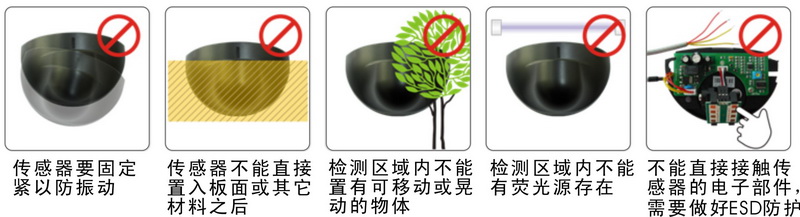

Installation Precautions
