Product overall qualities

1, with features online and offline operation. With the latest version V3.0 with card access control management system software.
2, authorization card features up to more than 2500 of the information, the more volume wildcard card authorization.
3, specifically with the management card, can be managed through a variety of card authorization management card handy when offline.
4, when the line can be any volume licensing flag VIP's. After the computer on-line authorization PC, making the card access control can be performed offline after a normal credit card authorization identified.
5, can be set through the whole cartoon open software applications so that any bank card can open the door. Also be open at any time to close the whole cartoon features.
6, through the application of the software can be set to blacklist certain magnetic shielding to facilitate people to enter.
7, through the application software can easily be remotely open the door, and easy on the card has been authorized to modify, and delete permissions.
8, ad hoc list of authorized bulk import EXCEL functions, making volume licensing is very convenient.
9, Special volume licensing status changes, can put all the information on a magnetic card authorization machines on the ground floor is very convenient to send a card on another machine.
10, using advanced hashing algorithm to ensure that the response is very fast and reliable door reader.
11, using the latest communication protocol to ensure a stable and reliable serial communication, communication is greatly improved anti-jamming capability.
12, after the site had been broken, the computer had been broken after receiving the information, immediately issued: "alarm signal."
13, in line with the heads read ANSI / ISO standards.
14, zinc alloy metal casing durable; tamper screw design, security tamper.Imported alloy heads, super wear-resistant, high sensitivity.
15, a unique anti-jamming measures, suitable for a variety of environmental installation.

Product Application Description

1, this product is a magnetic card access one machine. Through this card, or computer software applications to facilitate a variety of card (such as various bank cards, postal cards, VIP cards, membership cards, etc.) for each class of single authorization or

The volume licensing, so that only a portion of a particular cardholder to enter (such as a particular type of bank, the bank of a particular region, a certain type of VIP customers, specific VIP, etc.).

2, when the unit is connected to the PC computer, communication via RS232/485 converter, you can swipe the scene in real-time recording to the computer case.Tamper alarm and remote, remote door functions.

3, the card access one machine two routes output, RS485 signals to the computer all the way to achieve the mandate background, recording, alarm and remote door; another way to relay dry contact signal output directly to the access control system, power locks or open automatic doors.

4, the card machine is equipped with application software (disc one). Can be networked, can also be used offline.

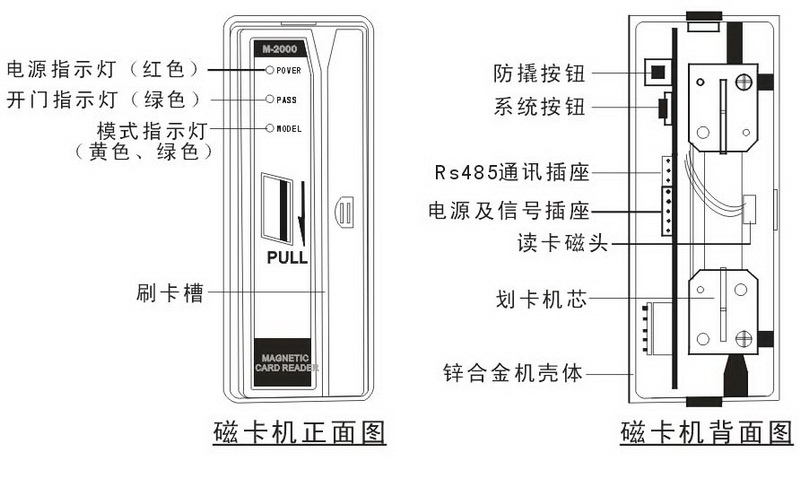

Panel presentation instructions and internal components
