Product Description

n   Wings automatic revolving door is automatic revolving doors and automatic sliding doors and luxury in one of the boxes show the perfect combination;

n   Automatic sliding door in the middle of the revolving door in the case of the horizontal position does not rotate through sensors that automatically open and close, and out freely;

n   Luxury exhibition box can be placed as an advertising platform and carrier artwork embodies elegance;

n   Can effectively isolate the rotation when the revolving door of indoor and outdoor air convection, reduce indoor cooling, heating overflow, while blocking sand dust, noise and exhaust into the room, so that people enjoy a warm and comfortable environment.

n   Wings automatic revolving door widely used in banks, hotels, shopping malls, office buildings, airports, hotels and a variety of entertainment;

Features and functions

n   Control system: adopts imported PLC (Programmable Logic Controller) control;

n   Door Frame: aluminum die-casting profile, high strength, good finish;

n   Outsourcing ornaments: brushed stainless steel, mirror stainless steel, aluminum fluorocarbon coating, anodizing, copper ornaments, etc.;

n   Glass: Laminated glass, bent glass, tempered glass, specialty glass, etc.   ;

n   Canopy: the use of plywood or metal panels do dustproof, waterproof seal deal for outdoor

n   Ceiling: the radial wedge plates, materials and color coordinated with the entire door jamb   ;

n   Safety features: a pinch, crash, anti-collision, disability slow, stop and other functions;

n   Fire features: fire control equipment, emergency evacuation capabilities;

n   Other features: magnetic identification technology, automatic speed regulation, automatic positioning lock function;

Operating Mode

n   Normal mode: the revolving door to (2-3) rev / min slow-stop operation;

n   Fast Mode: When pedestrians or objects through the door began to speed to (4-6) rev / min (adjustable) speed of rotation;

n   Slow mode: When the elderly, children or disabled persons through, press the Slow button, the slow rotation of the revolving door kept automatically return to normal operating speed;

n   Door sensors modes: automatic door sensors selected based on the state of climate change and the size of the flow of people, not only increases the flow of people, but also saves energy;

n   Power outage and fire mode: When the revolving door of fire or power failure signal is received, the revolving door leaf and door sensors while achieving open;

n   Lock mode: the revolving door at night or stop working, the revolving door lock mode is set to   ;

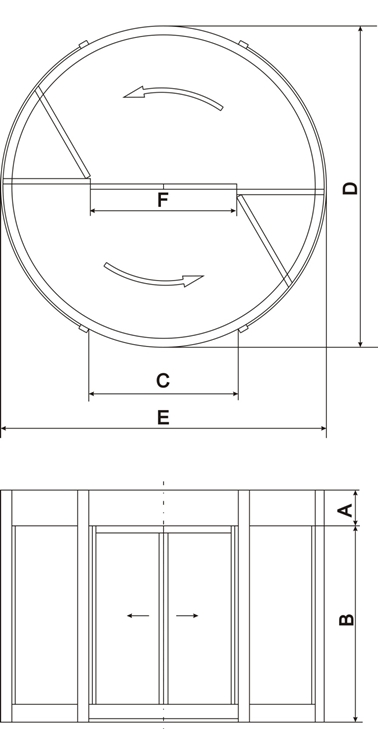

                                     Size
