Product Description
n Overlapping doors automatic doors using a collection of space can be incorporated into the two-leaf structure, so you can maximize the use of limited space. The same door wide open was able to increase the amplitude doubled after the narrow facade becomes wide open, and the more wide open after broad facade.
n Specially designed drive to open the outer doors faster than the inside of the doors, thus making simultaneous contact door pillar.
n Microcomputer intelligent control, easy to operate;
n Remote control to select the operating mode (such as auto, access control, semi-open, open, lock the door)
n Doors open and close by the sensors, access control (such as iris fingerprintaccess control, password access, non-contact IC card access control) control;
n Smoke sensors can be connected or building fire control centers, fire alarm and emergency evacuation realized;
n Built-in electronic safety devices, when the doors close automatically bounce obstacle, and quickly turned to avoid equipment damage clip human events and phenomena;
n Overlapping applications that require automatic door wide open spaces, such as car showrooms places, airports, shopping malls and other large channels required.
Core Technology
n Control: The United States advanced microcomputer processing technology, intelligent detection leaf weight and size of the opening, automatically set operating parameters, time monitoring of operation to ensure the smooth operation of automatic doors.
n Drive: using micro-processor instruction execution brushless DC motor, running precision, torque, long life.
n Deceleration mechanism: worm gear reducer, impatient tone, smooth and reliable.
n Transmission: Doors synchronous belt drive running gear precise, smooth operation.
n Tensioning mechanism: Constant adjustment drive belt tightness.
The main technical indicators
Specification |
Main Technical Indicators |
|
Door body style |
Single open |
Dual open |
Maximum leaf weight |
≤ 2 * 1 2 0kg |
≤ 4 * 100kg |
Net width of the opening |
1200-2700mm |
2200-3900mm |
Net opening height |
≤ 2500mm |
|
Opening speed |
300-550mm / s (adjustable) |
|
Closing speed |
200-550mm / s (adjustable) |
|
Manual opening force |
≤ 100 N (off state) |
|
Stay open |
0 ~ 10 s (adjustable) |
|
Rated Power |
100W |
|
Power supply |
AC220V 50Hz |
|
Operating ambient temperature |
-20 ℃ ~ +50 ℃ |

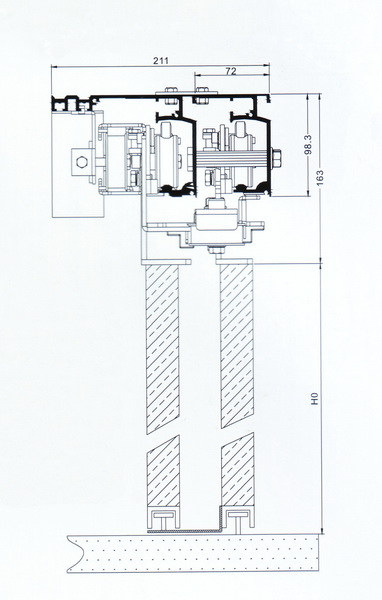

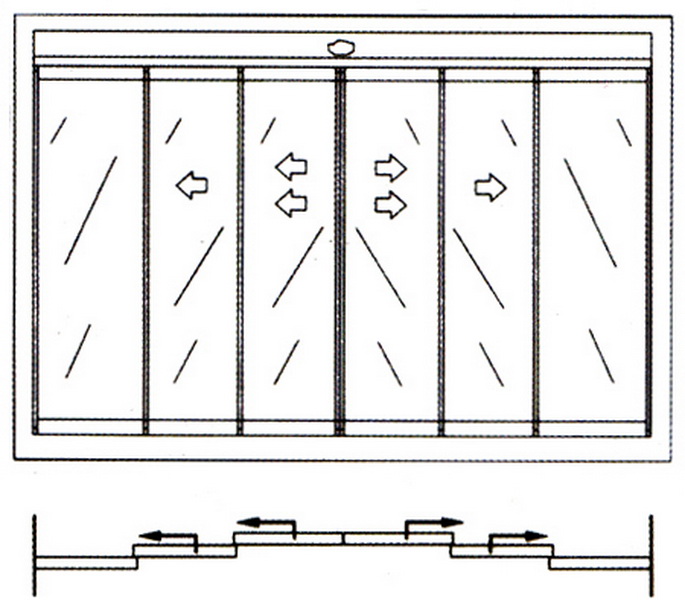

Schematic diagram
