Arc automatic door - Arc automatic door 【Back】 |
Product Description
n Curved sliding door automatic door combines the advantages of the rotating door, with a beautiful soft arc appearance, crystal clear glass doors, building entrances seem so luxurious;
n Curved automatic doors automatic doors into the whole arc-shaped, semi-circular arc automatic doors, automatic doors and curved arcs;
n Microcomputer intelligent control, easy to operate;
n Remote control to select the operating mode (such as auto, access control, semi-open, open, lock the door)
n Doors open and close by the sensors, access control (such as iris fingerprint access control, password access, non-contact IC card access control) control;
n Smoke sensors can be connected or building fire control centers, fire alarm and emergency evacuation realized;
n UPS backup power supply can be connected to ensure open and power outages continue to run;
n Built-in electronic safety devices, when the doors close automatically bounce obstacle, and quickly turned to avoid equipment damage clip human events and phenomena;
n With energy conservation, wind and dust and noise effects;
n Fluorocarbon coating surface is decorated with aluminum, brushed stainless steel, mirror stainless steel;
n Curved automatic doors is becoming a new favorite hotel, department stores, office buildings, luxury building.
Core Technology
n Control: The United States advanced microcomputer processing technology, intelligent detection leaf weight and size of the opening, automatically set operating parameters, time monitoring of operation to ensure the smooth operation of automatic doors.
n Drive: using micro-processor instruction execution brushless DC motor, running precision, torque, long life.
n Deceleration mechanism: worm gear reducer, impatient tone, smooth and reliable.
n Transmission: Doors synchronous belt drive running gear precise, smooth operation.
n Tensioning mechanism: Constant adjustment drive belt tightness.
The main technical indicators
|
Specification |
Main Technical Indicators |
|
|
Door body style |
Single open |
Dual open |
|
Maximum leaf weight |
120 Kg |
2 × 90 Kg |
|
Single-leaf doors Width |
≤ 1100mm |
|
|
Net opening height |
≤ 2200mm |
|
|
Opening speed |
≤ 500 mm / s (adjustable) |
≤ 4 00 mm / s (adjustable) |
|
Closing speed |
≤ 350 mm / s (adjustable) |
≤ 3 0 0mm / s (adjustable) |
|
Manual opening force |
≤ 100 N (off state) |
|
|
Stay open |
0 ~ 10 s (adjustable) |
|
|
Impatient tone |
≤ 60 dB |
|
|
Power supply |
AC220V 50Hz |
|
|
Operating ambient temperature |
-20 ℃ ~ +50 ℃ |
|

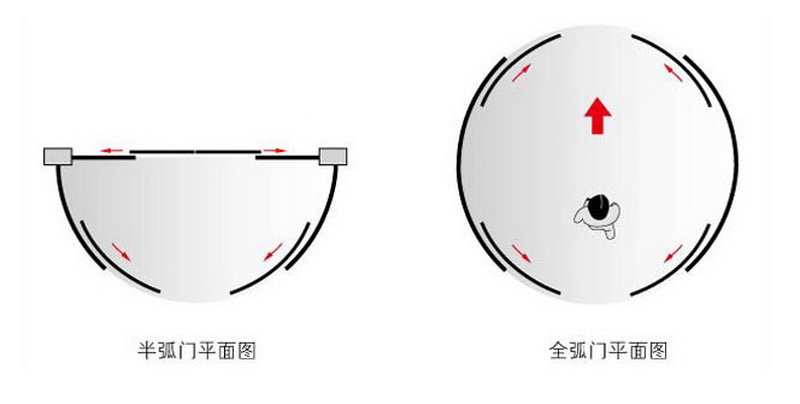

Curved automatic doors classification

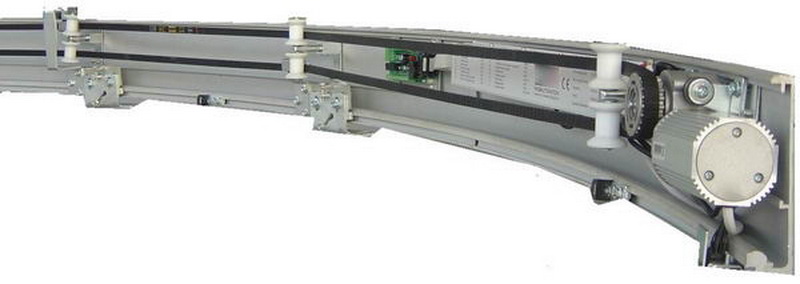

Partial view of the curved automatic doors
