Type B ordinary automatic door - Type B ordinary automatic door 【Back】 |

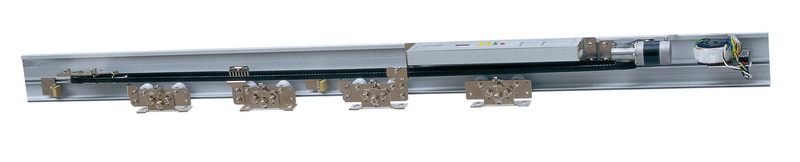

Model Name: B-280 / B type common automatic doors
Product Description
|
Item |
Content |
|
Leaf material |
Tempered glass |
|
Opening clear height |
≤ 3000 mm |
|
Opening Jingkuan |
1300 ~ 2500 mm |
|
Electronic safety device |
When the door is closed automatically bounce obstacle, and quickly opened; |
|
Remote Control |
Normal power supply, power can be used; |
|
Safety Light |
Automatically detects the position of someone opening the door, the doors automatically open, not closed |
|
Operating mode (remote control) |
Normal operation: automatic, access, open, lock the door; |
|
Off: open, lock the door; |
|
|
Opening the way |
Sensors, access control machines, hand charge switch, home button, etc.; |
|
Lock mode |
Class B electric locks the doors; magnetic locks motor ; |
|
Firefighting |
Automatic power door; fire automatic door; |
|
USP standby power |
After the power supply of the device; |
Core Technology
n Control: The United States advanced microcomputer processing technology, intelligent detection leaf weight and size of the opening, automatically set operating parameters, time monitoring to ensure the smooth running automatic door operation.
n Drive: using micro-processor instruction execution brushless DC motor, running precision, torque, long life.
n Deceleration mechanism: helical gear reducer, impatient tone, smooth and reliable.
n Transmission: Doors synchronous belt drive running gear precise, smooth operation.
n Tensioning mechanism: Constant adjustment drive belt tightness.
The main technical indicators
|
Specification |
Main Technical Indicators |
|
|
Door body style |
Single open |
Dual open |
|
Maximum leaf weight |
145 Kg |
2 × 120 Kg |
|
Net width of the opening |
750 ~ 1600 mm |
1300 ~ 2500 mm |
|
Net opening height |
≤ 3000mm |
|
|
Opening speed |
150 ~ 450 mm / s (adjustable) |
|
|
Closing speed |
130 ~ 450 mm / s (adjustable) |
|
|
Manual opening force |
≤ 100 N (off state) |
|
|
Stay open |
0 ~ 8 s (adjustable) |
|
|
Motor |
DC24V/65W (brushless DC) |
|
|
Impatient tone |
≤ 55 dB |
|
|
Rated Power |
100W |
|
|
Power supply |
AC220V 50Hz |
|
|
Operating ambient temperature |
-20 ℃ ~ +50 ℃ |
|
Cross-sectional view
