Product Description
n Brand: Wiener WNR
n Model Name: DS-280Z1 type / banking security automatic door
n Comply with the relevant requirements of the Public Security Ministry and standards used in banking business premises with the outside world and an important place of entrance channel
n Ministry of Public Security and Police Electronic Products Quality Inspection Center of qualified type test
n Applied for several patents, has the core technology and completely independent intellectual property rights
n Doors used in line GA165-1997/F79-26, the Ministry of Public authoritative institution type composite bulletproof glass inspection
n With security, fire protection, and security monitoring center console communication
n Bank security automatic door widely used in Industrial and Commercial Bank of China, China Construction Bank, Agricultural Bank, Postal Savings Bank of Agriculture and Commerce Bank, Industrial Bank and other joint-stock banks

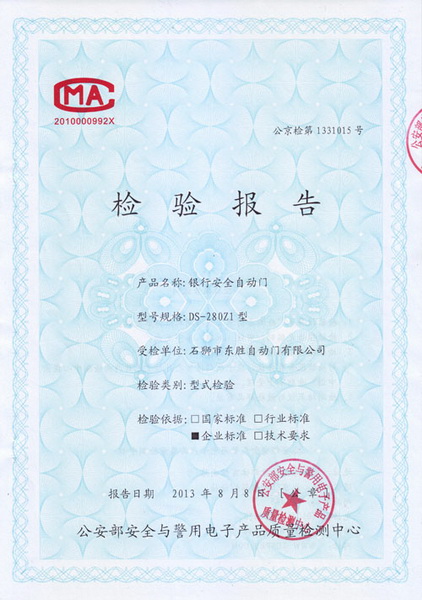

Ministry of Public Security a type test reports
Locked patents and description
To secure automatic door lock is the bank's strong security guarantee, prohibiting any unit manufacturing, sales, use and other violations.

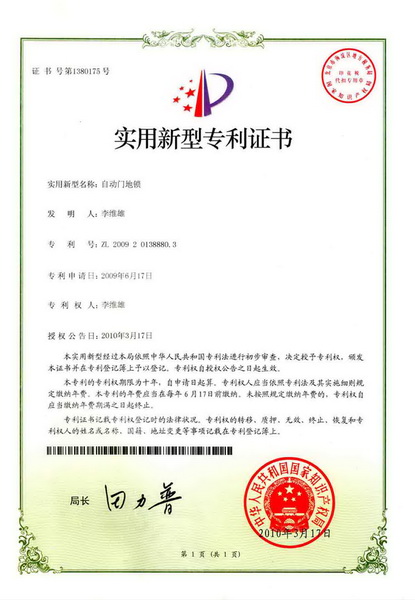

Locked patent
Locked patent Images
The main technical indicators
|
Specification |
Main Technical Indicators |
|
|
Door body style |
Single open |
Dual open |
|
Maximum leaf weight |
250 Kg |
2 × 180 Kg |
|
Net width of the opening |
650 ~ 1500 mm |
1350 ~ 2200 mm |
|
Net opening height |
≤ 2600mm |
|
|
Opening speed |
≤ 500 mm / s (adjustable) |
≤ 4 00 mm / s (adjustable) |
|
Closing speed |
≤ 350 mm / s (adjustable) |
≤ 3 0 0mm / s (adjustable) |
|
Manual opening force |
≤ 100 N (off state) |
|
|
Stay open |
0 ~ 8 s (adjustable) |
|
|
Motor |
DC24V/120W (brushless DC) |
|
|
Impatient tone |
≤ 60 dB |
|
|
Rated Power |
150W |
|
|
Power supply |
AC220V 50Hz |
|
|
Operating ambient temperature |
-20 ℃ ~ +50 ℃ |
|
Working Principle
Introduction
|
When section |
Item |
Function |
|
Camp Industry Time Between
|
Automatically open and close |
Automatic door opening and closing events fan is controlled by sensors; |
|
Firefighting Turned off |
220VAC power outage, activity fan automatically open to the maximum position and stay aware of all signals are invalid; |
|
|
Fire linkage opening (first priority) |
Smoke sensor detects a fire signal, the fan automatically turns on activities to the maximum position and stay, all sensing signal, remote control and security monitoring center console are ignored; |
|
|
Firefighting Forced to open (Second priority) |
Perform security monitoring center console commands, fan events and stay open to the maximum position, all the sensing signal, remote control operation are ineffective; |
|
|
Open wide |
Execute commands on the remote control, fan events and stay open to the maximum position, all perceptual signals are invalid; |
|
|
Restart |
Control system program disorder, restart the microprocessor reset; |
|
|
Power restart |
When the control system program disorder, 220VAC power off and then reconnected, the microprocessor reset; |
|
|
Non- Camp Industry Time Between
|
Lock mode |

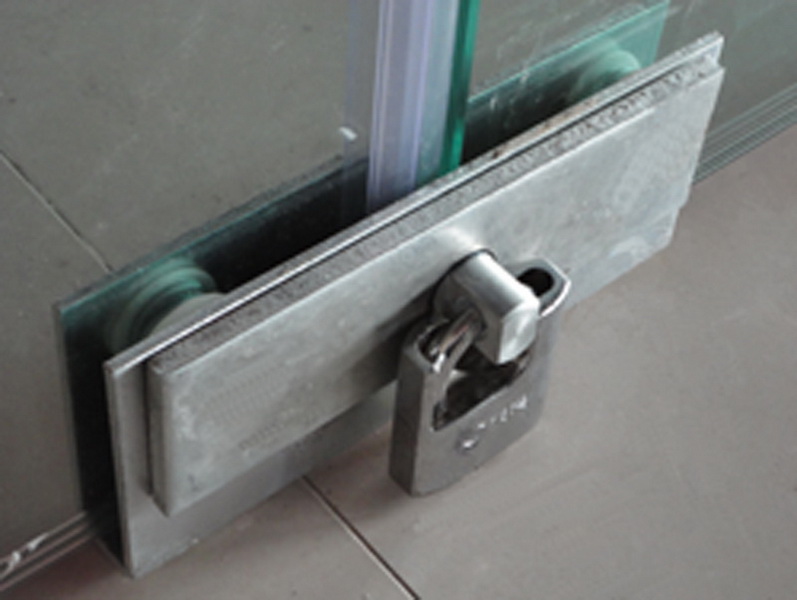

Class B electric locks, magnetic lock (patented), to lock (patented) three locks to lock the door; |
|
Electronic lock confirmation |
After the success of the electronic lock, security monitoring center console lights are lit; |
|
|
Arming |
Electronic lock automatically after arming, doors had been broken, security monitoring center console, sound and light alarm and security alarm host; |
|
|
Standby power lock |
After the lock off, standby power supply automatically locks to ensure the lock 25 hours; |
|
|
Undervoltage alarm |
When backup power supply for locks automatically start voltage alarm, when the standby supply voltage drops to work faster insufficient to maintain locks, security monitoring center console audible alarm and auto dialer alarm; |
Elevations

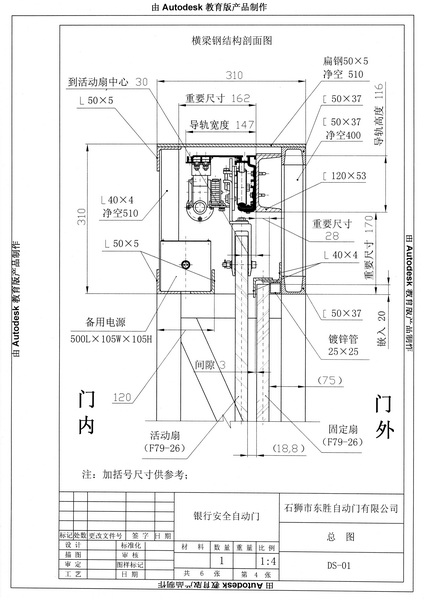

Cross-sectional view
CAD design and construction technical data
We'll owners and design units, construction units provide the following CAD technical information
n There are a total column chart template
n No total figure template column
n There are columns of steel template
n No column steel template
n Local communications cabling diagram
n Fire wiring and schematic
n Security wiring and schematic
n Security monitoring center console system diagram
